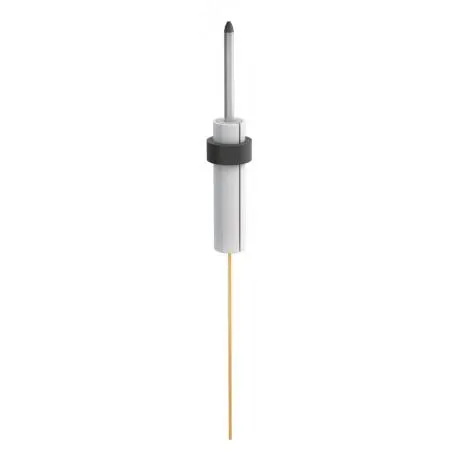

The injectors are designed to be used with Imaging Cannulas with Fluid Injection. They include a 1.25 mm sleeve to connect to cannula ferrule. The Fluid injector protrusion length starts from the tip of the imaging GRIN Lens. The user selects the injector protrusion length to be factory-adjusted.
-
* fiber length could be find at the end of the Ordering codeFluid Connector Stainless tube 485 µm OD
(compatible with 25ga tubing)Fluid Tubing ID Glass 100 µm inner diameter Polyimide 140 µm inner diameter Dead Volume SICL Glass 8 nL / mm* fiber length Polyimide 15.4 nL / mm* fiber length eTICL Glass 8 nL / mm* fiber length Polyimide 15.4 nL / mm* fiber length -
Drawing Fluid Injector for Microscope Cannulas
