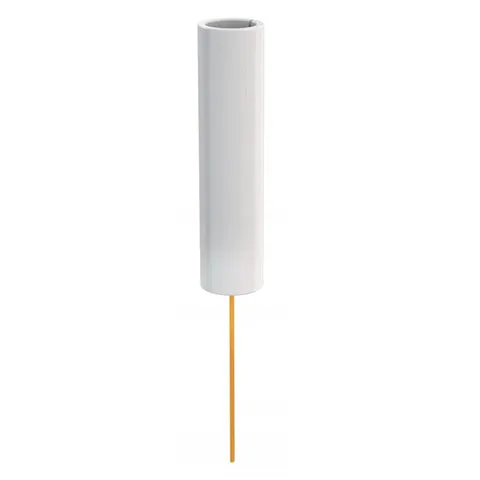

Name: Optical Injector for Dual Optofluid Cannula with Interchangeable Injectors
SKU: 343053

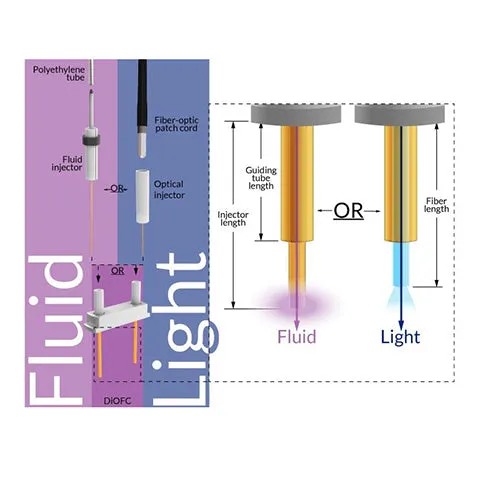

Those optical fibre injector are designed to use with Dual Optofluid Cannula with interchangeable injectors (DiOFC). Injector includes a 1.25 mm sleeve to connect to DiOFC ferrule. Optical fibre protrusion length should be precisely define according to the DiOFC tube length.

Fiber-optic Codes for Multiple Fluid Injection Cannula
Core (μm)	Outer (μm)	NA	Buffer Color	Outer Layer	Fiber-Optic Code
100	125	0.22	Yellow	Polyimide	100/125-0.22
100	125	0.37	Yellow	Polyimide	100/125-0.37
100	125	0.66	Clear	Borosilicate	100/125-0.66
200	240	0.22	Yellow	Polyimide	200/240-0.22
200	245	0.37	Yellow	Polyimide	200/245-0.37
200	250	0.66	Clear	Borosilicate	200/250-0.66
300	360	0.37	Yellow	Polyimide	300/360-0.37
300	370	0.22	Yellow	Polyimide	300/370-0.22
400	430	0.66	Clear	Borosilicate	400/430-0.66
400	470	0.37	Yellow	Polyimide	400/470-0.37
400	480	0.22	Yellow	Polyimide	400/480-0.22
